Led special placement machine G-208

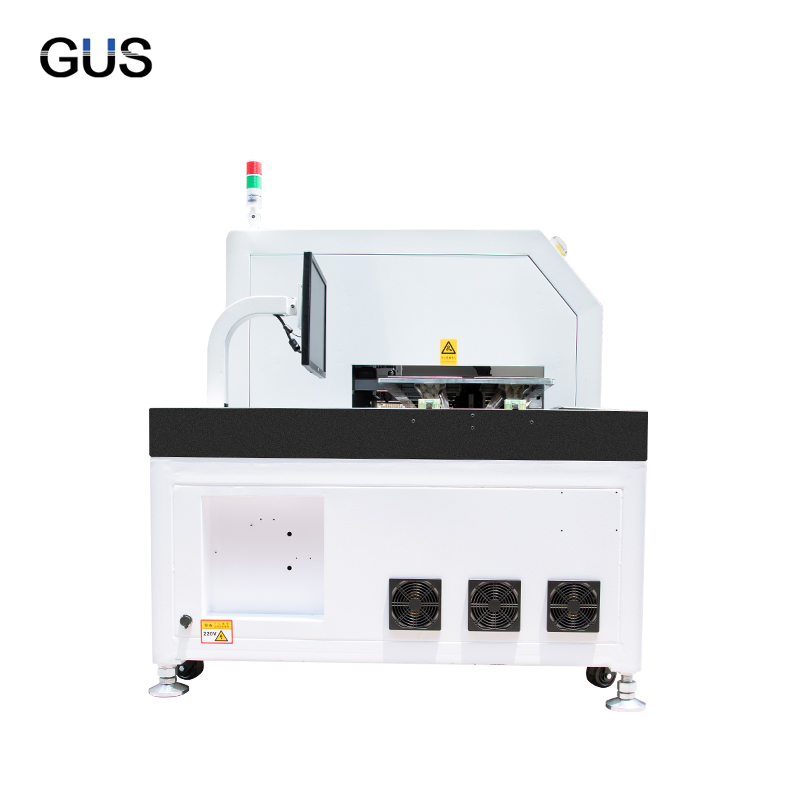

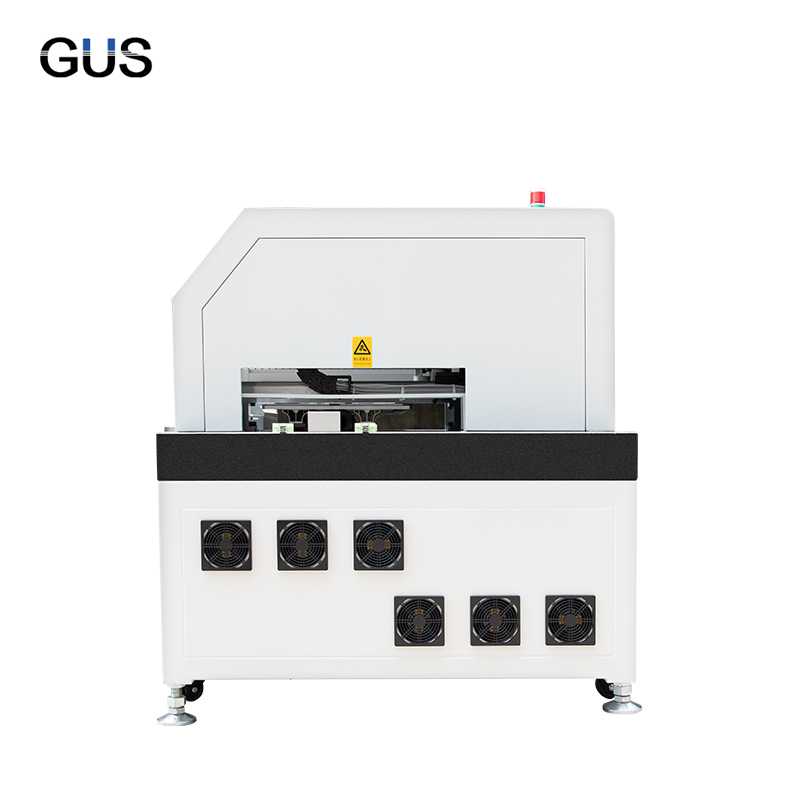

LED Placement Machine G208
Product Characteristics:
• 8 groups of independent rotating mounting heads.
• Additional marbile platform, high-speed mounting is more stable and more precise.
• The double motor electronic feeder is equipped with a vacuum pump without extemal gas source.
• 1500mm platform, PCB plate within 700mm can achieve circular production without shutting down.
• 8 sets of digital flight visual recognition cameras can be installed to reduce the error caused by feeding.
| Product name | G-208 |
| ball screw | X Y axis Japan THK P platform Taiwan |
| Vacuum detection system | Matsushita |
| Ball spline | 8 sets of Korea |
| Computer | Industrial computer |
| Guide | Taiwan Shangyin 6 sets |
| Cable line | More than 200 million times in Germany |
| vacuum system | 4 sets of Taiwan vacuum pumps |
| Maximum installed circuit board area | 1500mm×420mm |
| Maximum moving range | X-axis 310mm, Y-axis 480mm, p-axis 1390mm |
| Maximum movement range of Z axis | ±8mm |
| Maximum chip speed | 58000 tablets per hour |
| Actual placement speed | 37000-46000 tablets per hour |
| Mechanical accuracy | ±0.01mm |
| Positioning method | Visual positioning of mark point camera |
| Components can be pasted | 0805-8520 various components (lamp beads, resistors, capacitors), etc |
| Production type | LED fluorescent tube, soft light belt, module, display screen and other LED application products |
| Note: programming mode of copper wire | Automatic vision camera positioning programming, file excel import component coordinates |
| Number of feeders | Can place 18 Feida |
| operating system | WINDOWS XP |
| Power supply | 220V,50Hz，2KW |
| Weight of Mounter | About 1600Kg |
| Shape volume | 2000MM(L)*1200MM(W)*1500MM(H) |
