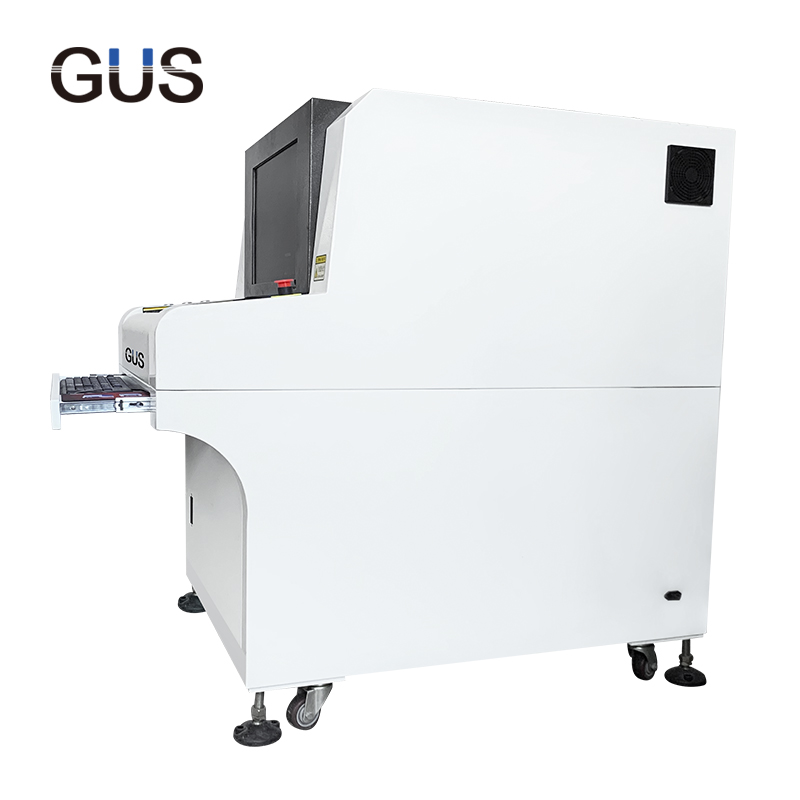

G-A910 Off-line AOI Testing Equipment
Product characteristics:
• Suitable for AOI inspection of high-end electronic products in SMT production line, minimum inspection of 01005 parts;
• Suitable for accurate and stable AOI detection of FPC soft board;
• Intelligent Camera Bar Code Recognition System(one-dimensional code and two-dimensional code can be selected);
• Professional SPC report analysis system, monitoring and analyzing product quality status at all times;
• The combination of remote programming and debugging control functions makes the software more powerful.
• PCB board A and B surface automatic recognition.
| Model | G-A910 | ||
| Visual Identification System | Discriminant Method |
Color Image Comparison, Logical Operation
|
|
|
Camera
|
CCD color camera
|
Resolution: 10 μm / Point
|
|
|
light source
|
RGB | White Four-Color Ring LED Structure Light Source | |
| Image Processing Speed | 0201 Chip | ＜8ms | |
| Processing Time Per Picture | ＜100ms | ||
|
Test Content
|
Solder Paste Printing
|
No Parts, Skew, Connection Solder Paste, Less Solder Paste, More Solder Paste, Break Circuit, Pollution | |
|
Part Defects
|
Defects, Deviations, Skews, Stele Erections, Side Erections, Reversals, Polarity Reversals, Faults, Damages | ||
|
Solder Joint Defect
|
Connecting Solder Paste, Less Solder Paste, More Solder Paste, Virtual Soldering | ||
| Computer System | PCB Size | Minimum: 25mm*25mm, Maximum: 380mm*480mm (Customizable Specifications) | |
| PCB Thickness | 0.5mm-2.5mm | ||
| PCB Warpage | (Fixture-Assisted Correction) | ||
| Part Height | ＜30mm | ||
| The Smallest Parts | 01005Chip | ||
|
X.Y Platform
|
Drive Device
|
AC Servo Imported Motor System
|
|
|
Positioning Accuracy
|
＜25μm （0.025mm） | ||
|
Moving Speed
|
600mm/s | ||
|
Software System
|
Operating System | Windows XP,Windows 2000,Windows 2003,Windows 7 | |
| Windows 7 | |||
|
Identification Control System
|
Feature
|
Statistical Shape Modeling, Learning OK Samples, Automatically Creating Standard Images, Identifying Data And Error Thresholds | |
|
Operating
|
Graphical Programming, With Component Library, According To The Standard Of Component Shape Selection, Automatic Generation Of Detection Frame, Accurate Positioning, Micro-Bit Fine-Tuning, Fast Process | ||
| Mark |
Points
|
0-2 Common Mark Points Can Be Selected | |
|
Recognition Speed
|
AC220V/-10%,50/60Hz，600W | ||
|
Control System
|
Industrial Computer | E5500,Dual Core Prcessor 3.0G,DDR 4G,SSD 60G | |
| Display |
22-Inch LED Display
|
||
|
Other Parameters
|
Mechanical Dimensions | （L）*（W）*（H）860mm*960mm*1560mm | |
| weight | 500kg | ||
| Power Supply | AC220V/-10%,50/60Hz，600W | ||
